Standard PV Module
——
Mainly used in large-scale ground-mounted power station and rooftop distributed power station.

Electrical Specification
ModelRK-105RK-110RK-115
Nominal Power(Pmpp)
105Wp110Wp115Wp
Power Tolerance±5%±5%±5%
Short Circuit Current(Isc)1.24A/2.48A1.24A/2.48A1.25A/2.50A
Open Circuit Voltage(Voc)123.8V/61.9V126.1V/63.1V126.5V/63.3V
Current at Pmax(Impp)1.08A/2.16A1.11A/2.22A1.14A/2.28A
Voltage at Pmax(Vmpp)

         97.2V/48.6V

99.8V/49.9V100.8V/50.4V

Standard Test Conditions(STC)：1000W/m2, AM1.5, 25℃





Mechanical Specification
Size1200×600×6.8mm
Weight12kg
Area0.72㎡

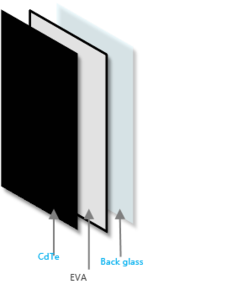

Structure3.2CdTe+0.5EVA+3.2C
TypeCdTe
Junction BoxBack,Side,Cable2.5m㎡,650±10㎜
ConnectorsMC4


Light and Heat Performance Date
Transmittance(%)0
Reflectivity out(%)

8

Reflectivity in(%)30
U-value(W/㎡·K)5.76
Sc0.31
Rw(dB)34


System Integration Characteristic Specification
Max System VoltageDC1000V(IEC)Protection LevelIP65
Max Reverse Current6ABurning ClassA2
Snow Load5400Pa(IEC)Temperature Coefficient(Pmax)-0.28%℃
Wind Load2400Pa(IEC)Temperature Coefficient(Voc)-0.28%℃
Temperature Range-40℃~+85℃Temperature Coefficient(Isc)+0.04%℃
Anti-hail RangeⅣ

A safety factor of 1.5 has been considered during the test





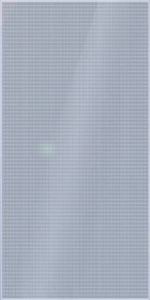

Transparent  Series
——
Mainly used in large-scale ground-mounted power station and rooftop distributed power station.



Electrical Specification
ModelRK-T10RK-T20RK-T40
Nominal Power(Pmpp)
90Wp80Wp60Wp
Transmittance10%20%40%
Power Tolerance±5%±5%±5%
Short Circuit Current(Isc)[A]1.110.990.74
Open Circuit Voltage(Voc)[V]124124124
Current at Pmax(Impp)[A]0.970.860.65
Voltage at Pmax(Vmpp)[V]

94

9494

Standard Test Conditions(STC)：1000W/m2, AM1.5, 25℃





Mechanical Specification
Size1200×600×6.8mm
Weight12kg
Area0.72㎡

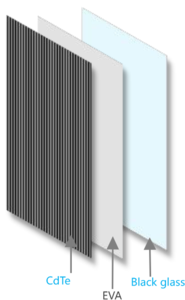

Structure3.2CdTe+0.5EVA+3.2C
TypeCdTe
Junction BoxBack,Side,Cable2.5m㎡,650±10㎜
ConnectorsMC4


Light and Heat Performance Date
Transmittance(%)0~40
Reflectivity out(%)

8

Reflectivity in(%)30
U-value(W/㎡·K)5.76
Sc0.31
Rw(dB)34


System Integration Characteristic Specification
Max System VoltageDC1000V(IEC)Protection LevelIP67
Max Reverse Current6ABurning ClassA2
Snow Load5400Pa(IEC)Temperature Coefficient(Pmax)-0.29%℃
Wind Load2400Pa(IEC)Temperature Coefficient(Voc)-0.28%℃
Temperature Range-40℃~+85℃Temperature Coefficient(Isc)+0.04%℃
Anti-hail RangeⅣ

A safety factor of 1.5 has been considered during the test





Transparent  Series



Mechanical Specification
Size1200×600×16.2mm
Weight26kg
Area0.72㎡

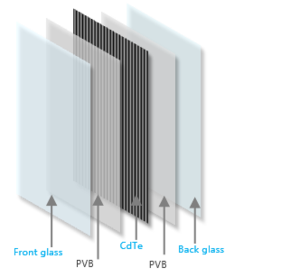

Structure5Li+1.52PVB+3.2CdTe+1.52PVB+5Li
TypeCdTe
Junction BoxBack,Side,Cable2.5m㎡,650±10㎜
ConnectorsMC4
Glass thickness can be selected according to design requirements,5㎜,6㎜,8㎜,10㎜


Light and Heat Performance Date
Transmittance(%)0~50
Reflectivity out(%)

7~15

Reflectivity in(%)20~30
U-value(W/㎡·K)5.20
Sc0.35~0.70
Rw(dB)38


Electrical Specification

Model

RK-JN-HTN

RK-JN-RTN-T10

RK-JN-RTN-T20

RK-JN-RTN-T40

Transmittance

0%

10%

20%

40%

Nominal Power(Pmpp)

100Wp

90Wp

80Wp

60Wp

Power Tolerance

±5%

±5%

±5%

±5%

Short Circuit Current(Isc)

2.64A

1.21A

1.06A

0.72A

Open Circuit Voltage(Voc)

60.8V

117V

117V

117V

Current at Pmax(Impp)

2.12A

1.03A

0.92A

0.69A

Voltage at Pmax(Vmpp)

47.1V

         87V

87V

87V

Standard Test Conditions(STC)：1000W/m2, AM1.5, 25℃



System Integration Characteristic Specification
Max System VoltageDC1000V(IEC)Protection LevelIP65
Max Reverse Current6ABurning ClassA2
Snow Load6000Pa(IEC)Temperature Coefficient(Pmax)-0.28%℃
Wind Load6000Pa(IEC)Temperature Coefficient(Voc)-0.28%℃
Temperature Range-40℃~+85℃Temperature Coefficient(Isc)+0.04%℃
Anti-hail RangeⅣ

A safety factor of 1.5 has been considered during the test





Color Series
——

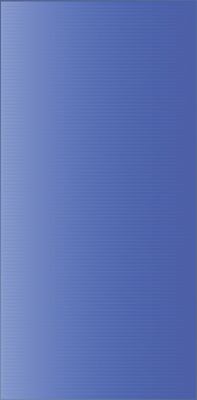

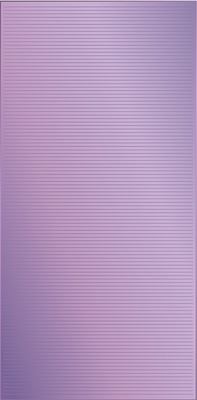

Blue                             Purple                               Gray
Mechanical Specification
Size1200×600×16.2mm
Weight26kg
Area0.72㎡

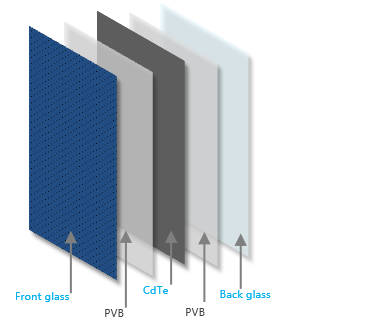

Structure5Li+1.52PVB+3.2CdTe+1.52PVB+5Li
TypeCdTe
Junction BoxBack,Side,Cable2.5m㎡,650±10㎜
ConnectorsMC4
Glass thickness can be selected according to design requirements,5㎜,6㎜,8㎜,10㎜


System Integration Characteristic Specification
Max System VoltageDC1000V(IEC)Protection LevelIP65
Max Reverse Current6ABurning ClassA2
Snow Load5000Pa(IEC)Temperature Coefficient(Pmax)-0.28%℃
Wind Load5000Pa(IEC)Temperature Coefficient(Voc)-0.28%℃
Temperature Range-40℃~+85℃Temperature Coefficient(Isc)+0.04%℃
Anti-hail RangeⅣ

A safety factor of 1.5 has been considered during the test





Light and Heat Performance Date
Transmittance(%)0~50
Reflectivity out(%)

7~15

Reflectivity in(%)20~30
U-value(W/㎡·K)5.20
Sc0.35~0.40
Rw(dB)38


Electrical Specification

Model

RK-JM-RTN

RK-JM-HTN

RK-JM-RTN-S

RK-JM-HTN-S

Design

Full

Point

Nominal Power(Pmpp)

60Wp

60Wp

80Wp

80Wp

Power Tolerance

±5%

±5%

±5%

±5%

Short Circuit Current(Isc)

1.21A

2.42A

0.72A

1.44A

Open Circuit Voltage(Voc)

117V

58.5V

117V

58.5V

Current at Pmax(Impp)

0.92A

1.84A

0.69A

1.38A

Voltage at Pmax(Vmpp)

87V

43.5V

87V

43.5V

Standard Test Conditions(STC)：1000W/m2, AM1.5, 25℃



Metal Imitation Series
——


Electrical Specification

Model

RK-JM-RTN

RK-JM-HTN

RK-JM-RTN

RK-JM-HTN

Design

Silver gray

Silver white/red copper

Nominal Power(Pmpp)

80Wp

80Wp

60Wp

60Wp

Power Tolerance

±5%

±5%

±5%

±5%

Short Circuit Current(Isc)

1.21A

2.42A

0.72A

1.44A

Open Circuit Voltage(Voc)

117V

58.5V

117V

58.5V

Current at Pmax(Impp)

0.92A

1.84A

0.69A

1.38A

Voltage at Pmax(Vmpp)

87V

43.5V

87V

43.5V

Standard Test Conditions(STC)：1000W/m2, AM1.5, 25℃



Mechanical Specification
Size1200×600×16.2mm
Weight26kg
Area0.72㎡

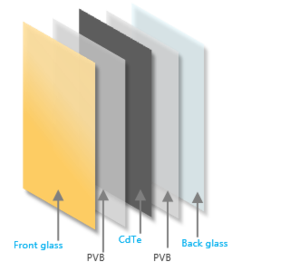

Structure5Li+1.52PVB+3.2CdTe+1.52PVB+5Li
TypeCdTe
Junction BoxBack,Side,Cable2.5m㎡,650±10㎜
ConnectorsMC4
Glass thickness can be selected according to design requirements,5㎜,6㎜,8㎜,10㎜


System Integration Characteristic Specification
Max System VoltageDC1000V(IEC)Protection LevelIP65
Max Reverse Current6ABurning ClassA2
Snow Load5000Pa(IEC)Temperature Coefficient(Pmax)-0.28%℃
Wind Load5000Pa(IEC)Temperature Coefficient(Voc)-0.28%℃
Temperature Range-40℃~+85℃Temperature Coefficient(Isc)+0.04%℃
Anti-hail RangeⅣ

A safety factor of 1.5 has been considered during the test





Light and Heat Performance Date
Transmittance(%)0~50
Reflectivity out(%)

7~15

Reflectivity in(%)20~30
U-value(W/㎡·K)5.20
Sc0.35~0.40
Rw(dB)38


Blue                           Purple                                Gray
Stone Imitation series
——

Electrical Specification

Model

RK-JS-RTN-01

RK-JS-HTN-01

RK-JS-RTN-02

RK-JS-HTN-02

Design

Marble

Wood grain

Nominal Power(Pmpp)

60Wp

60Wp

60Wp

60Wp

Power Tolerance

±5%

±5%

±5%

±5%

Short Circuit Current(Isc)

0.72A

1.44A

0.72A

1.44A

Open Circuit Voltage(Voc)

117V

58.5V

117V

58.5V

Current at Pmax(Impp)

0.69A

1.38A

0.69A

1.38A

Voltage at Pmax (Vmpp)

87V

43.5V

87V

43.5V

Standard Test Conditions(STC)：1000W/m2, AM1.5, 25℃



Light and Heat Performance Date

Transmittance(%)

0~50

Reflectivity out(%)

7~15

Reflectivity in(%)

20~30

U-value(W/㎡·K)

5.20

Sc

0.35~0.40

Rw(dB)

38


Mechanical Specification
Size1200×600×16.2mm
Weight26kg
Area0.72㎡

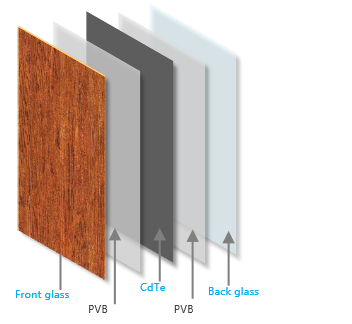

Structure5Li+1.52PVB+3.2CdTe+1.52PVB+5Li
TypeCdTe
Junction BoxBack,Side,Cable2.5m㎡,650±10㎜
ConnectorsMC4
Glass thickness can be selected according to design requirements,5㎜,6㎜,8㎜,10㎜


System Integration Characteristic Specification
Max System VoltageDC1000V(IEC)Protection LevelIP65
Max Reverse Current6ABurning ClassA2
Snow Load5000Pa(IEC)Temperature Coefficient(Pmax)-0.28%℃
Wind Load5000Pa(IEC)Temperature Coefficient(Voc)-0.28%℃
Temperature Range-40℃~+85℃Temperature Coefficient(Isc)+0.04%℃
Anti-hail RangeⅣ

A safety factor of 1.5 has been considered during the test





Electrical Specification

Model

RK-JN-RTI

RK-JN-RTI-T20

Transmittance

0%

20%

Nominal Power(Pmpp)

300Wp

240Wp

Power Tolerance

±5%

±5%

Short Circuit Current(Isc)

3.69A

3.18A

Open Circuit Voltage(Voc)

121.7V

117V

Current at Pmax(Impp)

3.18A

2.76A

Voltage at Pmax (Vmpp)

94.1V

87V

Standard Test Conditions(STC)：1000W/m2, AM1.5, 25℃

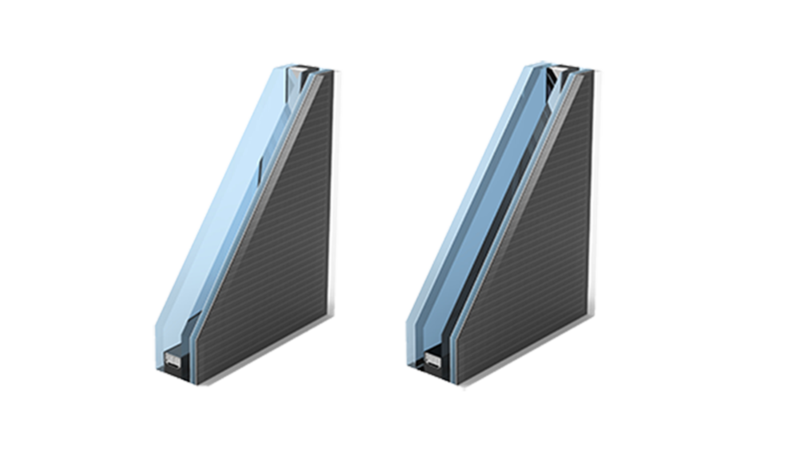

IGU Low-E Power Glass
——

System Integration Characteristic Specification
Max System VoltageDC1000V(IEC)Protection LevelIP65
Max Reverse Current6ABurning ClassA2
Snow Load5000Pa(IEC)Temperature Coefficient(Pmax)-0.28%℃
Wind Load5000Pa(IEC)Temperature Coefficient(Voc)-0.28%℃
Temperature Range-40℃~+85℃Temperature Coefficient(Isc)+0.04%℃
Anti-hail RangeⅣ

A safety factor of 1.5 has been considered during the test





Mechanical Specification
Size1200×600×36.2mm
Weight121kg
Area2.88㎡

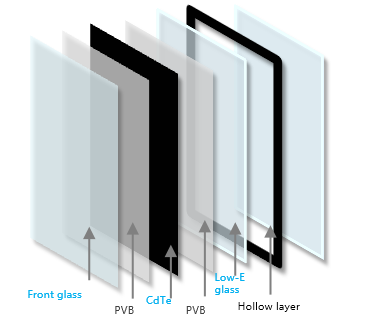

Structure6Li+1.52PVB+3.2CdTe+1.52PVB+6Low-E+12A+6Li
Hollow Layer12A
TypeCdTe
Junction BoxBack,Side,Cable2.5m㎡,650±10㎜
ConnectorsMC4

Glass thickness can be selected according to design requirements,5㎜,6㎜,8㎜,10㎜.

The hollow layer can be 12A,16A,12Ar，16Ar


Light and Heat Performance Date

Transmittance(%)

0~50

Reflectivity out(%)

7~15

Reflectivity in(%)

20~30

U-value(W/㎡·K)

1.50~1.80

Sc

0.15~0.50

Rw(dB)

43


System Integration Characteristic Specification
Max System VoltageDC1000V(IEC)Protection LevelIP65
Max Reverse Current6ABurning ClassA2
Snow Load5400Pa(IEC)Temperature Coefficient(Pmax)-0.28%℃
Wind Load2400Pa(IEC)Temperature Coefficient(Voc)-0.28%℃
Temperature Range-40℃~+85℃Temperature Coefficient(Isc)+0.04%℃
Anti-hail RangeⅣ

A safety factor of 1.5 has been considered during the test





Electrical Specification

Model

RK-105

RK-110

RK-115

Nominal Power(Pmpp)

105Wp

110Wp

115Wp

Power Tolerance

±5%

±5%

±5%

Short Circuit Current(Isc)

1.24A/2.48A

1.24A/2.48A

1.25A/2.5A

Open Circuit Voltage(Voc)

123.8V/61.9V

126.1V/63.1V

126.5V/63.3V

Current at Pmax(Impp)

1.08A/2.16A

1.11A/2.22A

1.14A/2.28A

Voltage at Pmax (Vmpp)

97.2V/48.6V

99.8V/49.9V

100.8V/50.4V

Standard Test Conditions(STC)：1000W/m2, AM1.5, 25℃



Industrial and Commercial Roof
——

Mechanical Specification
Size1200×600×6.8mm
Weight12kg
Area0.72㎡
Structure3.2CdTe+0.5EVA+3.2C
TypeCdTe
Junction BoxBack,Side,Cable2.5m㎡,650±10㎜
ConnectorsMC4


System Integration Characteristic Specification
Max System VoltageDC1000V(IEC)Protection LevelIP65
Max Reverse Current6ABurning ClassA2
Snow Load5400Pa(IEC)Temperature Coefficient(Pmax)-0.28%℃
Wind Load2400Pa(IEC)Temperature Coefficient(Voc)-0.28%℃
Temperature Range-40℃~+85℃Temperature Coefficient(Isc)+0.04%℃
Anti-hail RangeⅣ

A safety factor of 1.5 has been considered during the test





Mechanical Specification

Model

RK-WN-RDN-K24

RK-WN-RDN-K36

Size

400×600×6.8mm

1200×300×6.8mm

Area

0.24㎡

0.36㎡

Weight

5Kg

7Kg

Structure

3.2CdTe+0.5EVA+3.2FT

Support Layer

Black aluminum frame

Type

CdTe

Junction Box

Black,cable 2.5m㎡,650±10mm

Connectors

MC4



Electrical Specification

Model

RK-WN-RDN-K24

RK-WN-RDN-K36

Nominal Power(Pmpp)

32Wp

49Wp

Power Tolerance

±5%

±5%

Short Circuit Current(Isc)

1.23A

0.59A

Open Circuit Voltage(Voc)

38.3V

121.7V

Current at Pmax(Impp)

1.06A

0.52A

Voltage at Pmax (Vmpp)

29.7V

94.3V

Standard Test Conditions(STC)：1000W/m2, AM1.5, 25℃



Household PV Tiles
——


Contact us

US Division

Zhongshan Ruike New Energy (America) Co., Ltd.

Address: 1765 S Main St. 121 Milpitas, CA 95035 USA

Tel: +1 (408) 618 8565

E-mail: info@rksolar.com.cn
